INRX-8S
Heavy-duty 8-axis system for wide beams and panel lines.
Engineered for continuous production of H-beams and box columns. Features a 12m+ servo rail, dual-station capability, and adaptive laser seam tracking to eliminate manual programming.
Column with an additional 8th axis
A powered robot column that adds an extra external axis to extend reach and improve access around large workpieces.
Inverted Robot
Robot mounted upside down for superior reach into deep box structures.
Large beam dimensions
Typical large beam range, suitable for heavy structural steel fabricators and bridge girder manufacturers.
Megmeet 500SPR
Advanced 500A power source with extended water cooling gun for continuous heavy duty cycles.
Operator console
A dedicated workstation with HMI and controls for monitoring and operating the welding cell.
Medium-duty track
A linear track designed for medium payload applications to extend robot reach and improve coverage in welding cells.
BEAM
WELDING
System Capabilities
A high-capacity Column Mounted Robot Workstation built for wider structural components (up to 3.3m). Like the 7SR, it utilizes advanced point-cloud vision technology to weld directly from Tekla/SOLIDWORKS files or via reverse scanning. Ideal for bridge manufacturing, shipbuilding, and complex T/U-beam assemblies.
Extra Wide Reach
Handles parts up to 3.3m wide, perfect for bridge decks and ship panels.
Smart Processing
Directly imports Tekla/UG files to generate ready-to-run weld programs.
Adaptive Fill
Vision system detects gap variations and adjusts wire feed automatically.
Complex Parts
Easily handles T-bars, U-ribs, and variable section beams.
Key Specifications
Cell Configurations
Automation Add-ons
- Extra robots on track (Sync)
- Beam rotators & positioners
- Extended loading buffers
- Quality Control Logging
Working Envelope
Detailed dimensions and effective welding range.

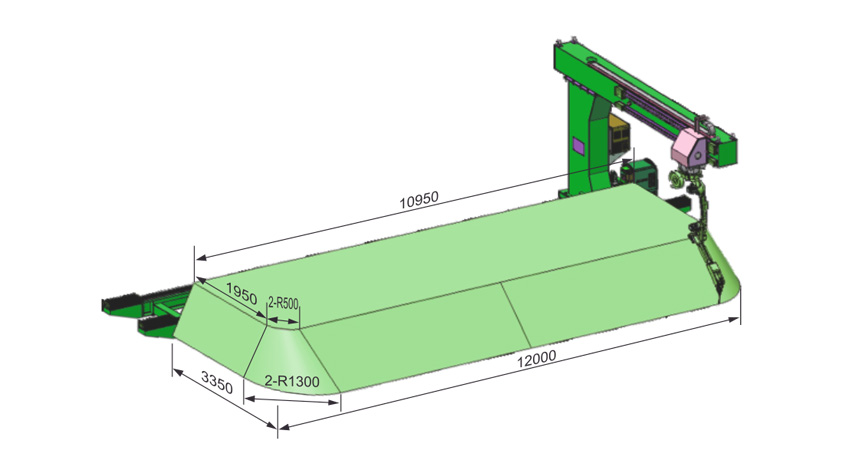

3D Operation Zone
*Length is fully customizable to fit your facility.

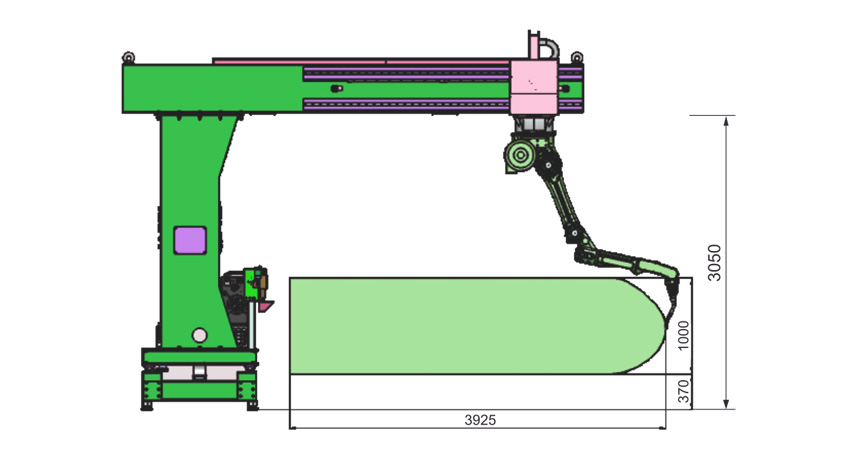

Cross Section
Choose Your Workflow
Whether you have detailed 3D drawings or just the physical part, we have a solution.
Import Model
Load .STEP, .IGS, or .IFC files directly from TEKLA/SolidWorks.
Extract Welds
One-click recognition. Software auto-matches welding parameters.
Simulation
Digital Twin checks for collisions and reachability offline.
Production
Robot executes the weld with real-time Arc Tracking correction.
Standard Equipment
Wireless Handheld Control
Phone-sized wireless teach pendant with 20m range. Magnetic back attaches to any steel column.
Intelligent Safety Status
Tri-color alarm beacon (Red/Yellow/Green) provides instant visual status. Multiple E-Stop points.
Digital Twin Sync
Real-time synchronization between physical robot and software model.
Digital Twin
Intelligence
The brain of the operation. Full offline programming, simulation, and collision detection powered by advanced algorithms.
Laser Seam Tracking
Visual Positioning & Arc Tracking
Precise seam finding combined with real-time path correction helps control welding deformation throughout the entire process.
Start Point Precision
Linear laser scanning identifies the exact weld seam start point before the arc strikes.
Real-time Arc Tracking
During welding, the system continuously locates the seam center and corrects the robot path instantly.
Configure Your Cell
Input your max product dimensions to find the perfect track length and robot model.
Additional Automation Options
Customize your cell with these powerful modules to maximize throughput and data visibility.
Multi-Robot Sync
Extra robots on the same track.
Beam Rotators
Automatic positioners.
1 AXIS Positioner
A single-axis positioner that rotates frames.
2 AXIS Positioner
A dual-axis positioner that tilts and rotates components
Efficiency Comparison
Time lost to positioning, grinding, resting.
Continuous operation. Zero fatigue.
Built for Profitability
Automation isn't just about technology; it's about survival. Hedge against welder shortages and fix your production costs today.
11-30 Mo.
Typical ROI Payback Period
3x Output
vs. Manual Welding Shift
0%
Reliance on Skilled Labor
100%
Consistent Weld Quality
