INRX-7
The industry standard for structural steel welding.
Engineered for continuous production of H-beams and box columns. Features a 12m+ servo rail, dual-station capability, and adaptive laser seam tracking to eliminate manual programming.
Laser Seam Finder
Large viewing distance sensor. Scans weld profile and guides the robot without external PC.
Light-duty track
A compact linear track for low-to-medium payload applications to extend robot reach in smaller welding cells.
6-axis Robot
Two working zones on both sides of the track.
Megmeet 500SPR
Advanced 500A power source with extended water cooling gun for continuous heavy duty cycles.
Second robot on track (optional)
An optional additional robot on a linear track to increase throughput and expand welding coverage.
Small and medium beam dimensions
Typical small-to-mid beam range, suitable for structural steel fabricators, machinery frame manufacturers, and general metal construction.
BEAM
WELDING
System Capabilities
A robust 7-axis system combining a high-precision welding robot with a heavy-duty floor track. Designed for continuous welding of long H-beams and I-beams with zero setup time. Features intelligent seam tracking, digital twin technology, and a dual-station setup for maximum uptime.
60% Arc-On Time
Continuous welding and dual stations boost efficiency 3x over manual welding.
Fast ROI
Typical payback period of 11–30 months due to reduced labor dependency.
Extended Range
Linear track extends the robot work envelope to cover beams of any length.
Smart Tracking
Arc-resistant laser sensor identifies welds instantly, no programming needed.
Key Specifications
Cell Configurations
Automation Add-ons
- Extra robots on track (Sync)
- Beam rotators & positioners
- Extended loading buffers
- Quality Control Logging
Working Envelope
Detailed dimensions and effective welding range.

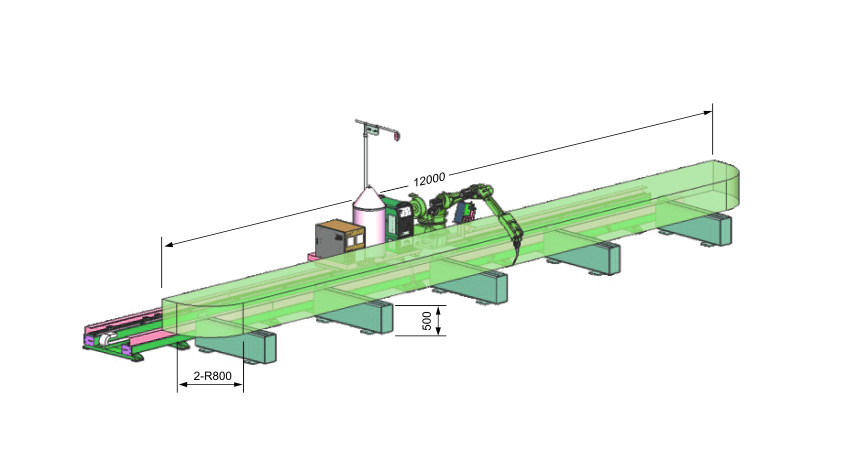

3D Operation Zone
*Length is fully customizable to fit your facility.

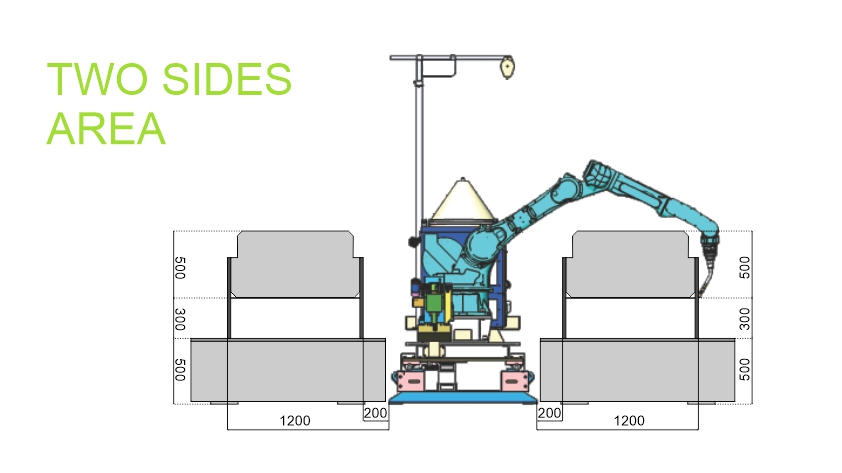

Cross Section
Choose Your Workflow
Whether you have detailed 3D drawings or just the physical part, we have a solution.

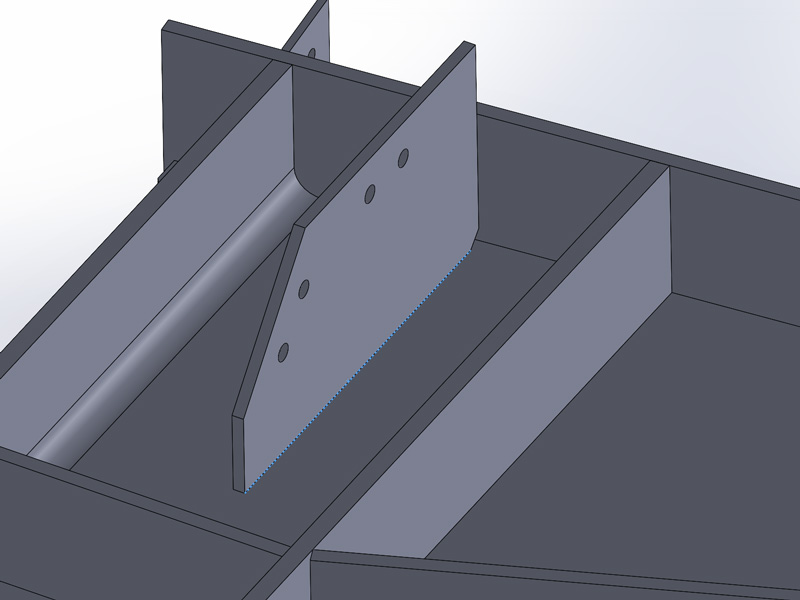

Import Model
Load .STEP, .IGS, or .IFC files directly from TEKLA/SolidWorks.
Extract Welds
One-click recognition. Software auto-matches welding parameters.
Simulation
Digital Twin checks for collisions and reachability offline.
Production
Robot executes the weld with real-time Arc Tracking correction.
Standard Equipment
Wireless Handheld Control
Phone-sized wireless teach pendant with 20m range. Magnetic back attaches to any steel column.
Intelligent Safety Status
Tri-color alarm beacon (Red/Yellow/Green) provides instant visual status. Multiple E-Stop points.
Digital Twin Sync
Real-time synchronization between physical robot and software model.
Digital Twin
Intelligence
The brain of the operation. Full offline programming, simulation, and collision detection powered by advanced algorithms.
Laser Seam Tracking
Visual Positioning & Arc Tracking
Precise seam finding combined with real-time path correction helps control welding deformation throughout the entire process.
Start Point Precision
Linear laser scanning identifies the exact weld seam start point before the arc strikes.
Real-time Arc Tracking
During welding, the system continuously locates the seam center and corrects the robot path instantly.
Configure Your Cell
Input your max product dimensions to find the perfect track length and robot model.
Additional Automation Options
Customize your cell with these powerful modules to maximize throughput and data visibility.

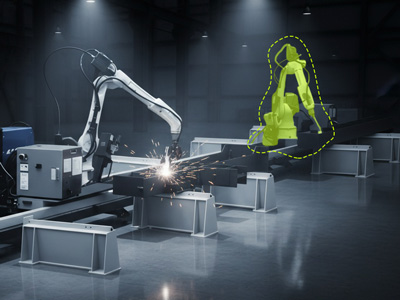

Multi-Robot Sync
Extra robots on the same track.

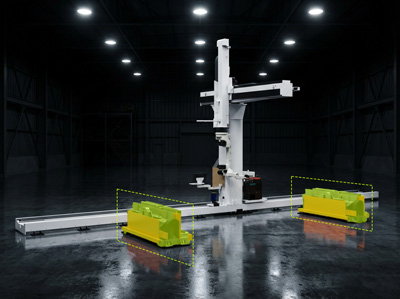

Beam Rotators
Automatic positioners.

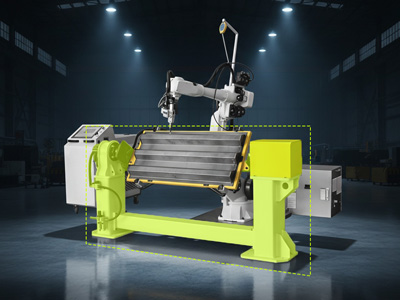

1 AXIS Positioner
A single-axis positioner that rotates frames.
2 AXIS Positioner
A dual-axis positioner that tilts and rotates components
Efficiency Comparison
Time lost to positioning, grinding, resting.
Continuous operation. Zero fatigue.
Built for Profitability
Automation isn't just about technology; it's about survival. Hedge against welder shortages and fix your production costs today.
11-30 Mo.
Typical ROI Payback Period
3x Output
vs. Manual Welding Shift
0%
Reliance on Skilled Labor
100%
Consistent Weld Quality
